VUKOPOR® S CERAMIC FOAM

DESCRIPTION :

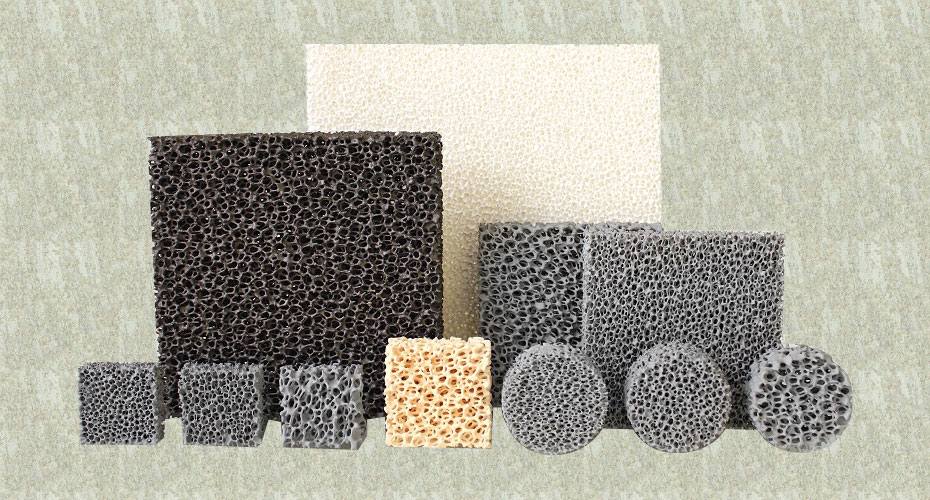

VUKOPOR® S ceramic foam filters are designed for filtering castings of cast iron, bronze, brass and copper-alloys. The maximum recommended temperature of the application is 1480°C.

The filters owe their qualities to the opened 3D structure of their ceramic matrix formed of a system of interconnected cells. They have very good heat conductivity, stability and resistance to sudden temperature changes. Chemical properties of the ceramic body allow very fast “priming” without any negative effect on
metal. Ceramic foam filters generally help to produce higher quality castings at lower production costs.

ENHANCED QUALITY OF CASTINGS:

COSTS REDUCTION :

SPECIAL FEATURES:

VUKOPOR® S can be used in “filter prints” of the gating system as well as for direct pouring on the filter in combination with exothermic sleeves. Moreover, they can be used in filter bowls for filtering of copper-alloys in casting campaigns.

High metallurgical purity of the melt within casting is achieved through the efficient filtration ability of “filter cake” formation on the face and deep filtration mechanism inside of the filter body.

VUKOPOR® ceramic foam filters make it possible to reduce the turbulence of the flow during mould filling
and so prevent from creation of new inclusions and undesired defects of castings. This is possible because of turbulent flow of molten metal is transformed into laminar flow behind the filter.

Chemical Composition:	SiC, Al2O3 ,SiO2
Bond:	Ceramic
Colour:	Grey
Porosity:	10, 20, 30 ppi
Application Temperature:	max. 1480°C
Basic Shapes:	Square, circle, rectangle
Special Shapes:	According to request from customer
Tolerance of Dimensions: Note: measured with callipers equipped with flat contact elements (46x30 mm)	+ 0,5 / - 1,5 mm (up to 99 mm) + 0,5 / - 2,5 mm (above 100 mm)

Chemical Composition:	SiC, Al2O3 ,SiO2
Bond:	Ceramic
Colour:	Grey
Porosity:	10, 20, 30 ppi
Application Temperature:	max. 1480°C
Basic Shapes:	Square, circle, rectangle
Special Shapes:	According to request from customer
Tolerance of Dimensions: Note: measured with callipers equipped with flat contact elements (46x30 mm)	+ 0,5 / - 1,5 mm (up to 99 mm) + 0,5 / - 2,5 mm (above 100 mm)

Closed pores, cracks and holes in the effective areas of the filter are not allowed. The surface area of the sidewalls can be filled with ceramics.

Quality Control Process

The ceramic foam filters are manufactured in compliance with the quality control standards ISO 9001 : 2008.

Dimensions and Technical Parameters

The values shown in the table apply to casting of grey cast iron and ductile iron and are based on so-far performed tests and information available. They can vary depending on the actual conditions in foundries e.g. temperature, metal contamination level, filter position in gating system and other variables.

When choosing a size, shape, dimensions and porosity of a filter, you should keep to the generally applicable rules and principles. The same applies to choosing the type of the “filter print”, space for the filter placement and its orientation. The basic rules and recommendations are given in the Application List “How to design gating system with filters”. Atypical applications should be consulted with the Sales Department.

Dimension (mm)	Thickness (mm)	Capacity (kg)	Flow Rate (kg/s)	Capacity (kg)	Flow Rate (kg/s)	Capacity (kg)	Flow Rate (kg/s)	Capacity (kg)	Flow Rate (kg/s)
10 ppi		10 ppi		20 ppi		30 ppi
nodular iron				grey iron

40x40x	15, 18, 22	32	3	74	4	52	3	43	2
50x50x	15, 18, 22	50	4	115	6	81	3,5	67	3
55x55x	15, 18, 22	60	5	139	7	98	5	82	4
60x60x	15, 18, 22	72	6	166	9	117	6	98	5
67x67x	15, 18, 22	89	7	206	11	145	8	121	6
75x50x	15, 18, 22	75	6	173	9	122	6	102	5
75x75x	18, 20, 22	113	9	259	14	182	10	152	8
80x80x	18, 20, 22	128	11	295	16	208	12	173	10
100x50x	18, 20, 22	100	8	230	12	162	9	135	7
100x75x	18, 20, 22	150	12	345	18	243	13	203	11
100x100x	20, 22, 25	200	16	460	24	324	18	270	15
125x125x	22, 25, 30	312	25	718	38	506	28	422	23
133x133x	22, 25, 30	353	29	813	43	573	32	478	26
150x100x	22, 25, 30	300	24	690	36	486	27	405	22
150x150x	22, 25, 30	450	36	1035	54	729	40	608	33
ø 35x	15, 18, 22	19	2	44	2	31	2	26	1,5
ø 40x	15, 18, 22	25	2	58	3	41	2	34	2
ø 50x	15, 18, 22	39	3	90	5	64	4	53	3
ø 60x	15, 18, 22	56	5	130	7	92	5	76	4
ø 70x	18, 20, 22	77	6	177	9	125	7	104	6
ø 75x	18, 20, 22	88	7	203	11	143	8	119	6,5
ø 90x	20, 22, 25	127	10	293	15	206	11	172	9
ø 100x	22, 25, 30	156	13	361	19	254	14	212	12
ø 125x	22, 25, 30	244	20	565	30	398	22	331	18
ø 150x	22, 25, 30	352	29	813	43	573	32	477	26

Dimension (mm)	Thickness (mm)	Capacity (kg)	Flow Rate (kg/s)	Capacity (kg)	Flow Rate (kg/s)	Capacity (kg)	Flow Rate (kg/s)	Capacity (kg)	Flow Rate (kg/s)
		10 ppi		10 ppi		20 ppi		30 ppi
		nodular iron				grey iron

40x40x	15, 18, 22	32	3	74	4	52	3	43	2
50x50x	15, 18, 22	50	4	115	6	81	3,5	67	3
55x55x	15, 18, 22	60	5	139	7	98	5	82	4
60x60x	15, 18, 22	72	6	166	9	117	6	98	5
67x67x	15, 18, 22	89	7	206	11	145	8	121	6
75x50x	15, 18, 22	75	6	173	9	122	6	102	5
75x75x	18, 20, 22	113	9	259	14	182	10	152	8
80x80x	18, 20, 22	128	11	295	16	208	12	173	10
100x50x	18, 20, 22	100	8	230	12	162	9	135	7
100x75x	18, 20, 22	150	12	345	18	243	13	203	11
100x100x	20, 22, 25	200	16	460	24	324	18	270	15
125x125x	22, 25, 30	312	25	718	38	506	28	422	23
133x133x	22, 25, 30	353	29	813	43	573	32	478	26
150x100x	22, 25, 30	300	24	690	36	486	27	405	22
150x150x	22, 25, 30	450	36	1035	54	729	40	608	33
ø 35x	15, 18, 22	19	2	44	2	31	2	26	1,5
ø 40x	15, 18, 22	25	2	58	3	41	2	34	2
ø 50x	15, 18, 22	39	3	90	5	64	4	53	3
ø 60x	15, 18, 22	56	5	130	7	92	5	76	4
ø 70x	18, 20, 22	77	6	177	9	125	7	104	6
ø 75x	18, 20, 22	88	7	203	11	143	8	119	6,5
ø 90x	20, 22, 25	127	10	293	15	206	11	172	9
ø 100x	22, 25, 30	156	13	361	19	254	14	212	12
ø 125x	22, 25, 30	244	20	565	30	398	22	331	18
ø 150x	22, 25, 30	352	29	813	43	573	32	477	26

TRANSPORTATION, STORING AND HANDLING:

The cardboard boxes and packages with ceramic foam filters are transported in covered means of transport. They can only be stored in covered and dry storage rooms. It is only allowed to stack seven layers on each other. If during the transport the filters were exposed to high humidity, they have to be dried at the temperature of 110°C. Ceramic foam filters are fragile and should be handled accordingly. Take a filter out of the package and carefully remove possible ceramic particles by hand or blow them off with pressure air.

PACKAGING AND MARKING:

The foundry filters are packed in cardboard boxes protecting them from damage. Layers of filters are separated with a soft tissue. Space is left between individual filters to prevent contact in the box. The box with filters must be delivered undamaged without apparent defects. Each box has a filter identification tag containing data on: filter type, porosity, dimension, production date, production order number, number of the inspection worker, additional label, etc.
